QEEPO Space Electrostatic Elimination System ionizing bar

Short Description:

input voltage: 24-36V DC

working voltage：0～±20KV DC Positive And Negative High Voltage Can Be Adjusted Separately

power:≤5W

working frequency: 0～5Hz

working temperature: 0~40℃

Discharge electrode material: Single Crystal Silicon/tungsten Needle(Replaceable)

Working humidity: 35%～75%RH（No Condensation)

Min Order Quantity:1 Piece/Pieces

Supply Ability:10000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton

Send email to us Download as PDF

Product Detail

Product Tags

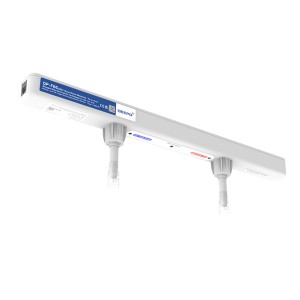

QEEPO Space Electrostatic Elimination System Ionizing Bar

QP-F66 (SSE) Space Static Eliminator Is A Product Independently Developed And Produced By Our Company, Which Is Suitable For Eliminating Space Static Electricity And Achieving A Certain Range Of Static Electricity Values In The Environment.It Has Multiple Adjustment, Protection, And Indication Functions And Can Be Monitored And Adjusted Through A Mobile Mini Program Or QP-CONTROL SOFT Software (Connected To A QP-ADJ40 Control Relay). It Can Adjust And Set The Output Voltage (Positive And Negative Can Be Independently Adjusted), Working Frequency, And Working Proportion;The Product Adopts An Integrated Design And Is Equipped With A 24V DC Input For Direct Use; The Discharge Electrode Can Be Replaced To Better Meet Customer Needs And Extend The Product's Service Life; Pulse Dc Or Steady-state Dc Operating Mode.

QP-ADJ40 Control Relay Is Specifically Designed For Connection Control With QP-F66 (SSE), With A Maximum Of 40 Connections; And Connect Wirelessly Or Wired With QP-CONTROL SOFT Software. It Can Display The Working Status Of The Electrostatic Eliminator In Real Time, And Can Output Working Signals Or Connect To Sound And Light Alarms.The QP-CONTROL SOFT Software Provides Visual Monitoring And Management Tools, Which Can View The Working Status And Related Parameters Of Products In Real Time. Through The Interface, The Working Status Of Each Product Can Be Visually Viewed. There Are Also Alarm Log Lists, Point Maps, Product Summary Diagrams, Etc. The Database Stores Historical Data In Real-time And Can Be Exported.

Feature Description

Detachable Discharge Electrode

Can Be Viewed In Real-time

Real Time Viewing Of Work Status And Parameter Adjustment Through Mobile Mini Program

Can Be Connected In Series

Connected Systems

Installation case

Performance parameter

Model	QP-F66(SSE)
Input Voltage	24-36V DC	Control Mode	Through Mobile Mini Programs Or QP-CONTROL SOFT Software
Power	≤5W	Ozone Production	≤0.005ppm
Working Voltage	0～±20KV DC Positive And Negative High Voltage Can Be Adjusted Separately	Material Of Discharge Electrode	Single Crystal Silicon/tungsten Needle(Replaceable)
Working Frequency	0～5Hz	Main Material	PC、ABS FR.
Work Proportion	40% ：60%（POS:NEG）	Working Humidity	35%～75%RH（No Condensation)
Working Mode	Pulse DC/Steady-State DC	Working Temperature	0℃～40℃
Connection Line	RJ45 8P8C (Both Ends Of The Product Have RJ45 Sockets）

Model	QP-ADJ40
Input Voltage	220V AC	Output Signal	TCPIP, Rs485,+24V, Relay
Power	600W	Connected Load	Up To 40 Can Be Connected, And Each Output Network Port Can Connect Up To 7. When Connecting 7, The Maximum Connection Length Is 16m, And When Connecting 1, The Maximum Connection Length Is 60m
Output Voltage	36V DC	Connected Load
